Greenfield · 3 MW
Greenfield site on the Mediterranean coast developed into a purpose-built AI-ready facility. Hybrid liquid cooling architecture designed for high-density compute workloads up to 80 kW per rack.
Technical Specifications
IT Load
3 MW
Max Density
80 kW/rack
Target PUE
<1.3
Design Tier
Tier III+
Cooling
Hybrid Liquid
Construction
12-18 months
Strategic Mediterranean Location
Located on the Catalan Mediterranean coast in an established industrial zone. Excellent grid connectivity, fiber infrastructure, and Mediterranean climate advantages for cooling efficiency.
Coastal Industrial Zone
Established Catalan industrial area with mature power grid and fiber infrastructure
Mediterranean Climate
Mild winters enable extensive free cooling hours, reducing energy consumption
Water Access
Proximity to a major river for potential cooling integration
Grid Connectivity
Direct access to industrial-grade power with renewable integration options
Technical Advantages
80 kW per Rack
High-density AI/GPU compute capacity with hybrid liquid-cooled and air-cooled architecture
Hybrid Cooling
CDU-based liquid cooling with high-temperature chillers for maximum efficiency
Power Infrastructure
3 MW IT load with N+1 and 2N redundancy configurations
Tier III+ Design
EN 50600 compliant architecture with concurrent maintainability and fault tolerance
Building Specifications
6,230 m²
Total Built Area
Including mechanical & electrical yards
835 m²
Data Hall Area
8,990 sf server hall
8.3 m
Building Height
27'3" to roof ridge
1,228 m²
Mechanical Yard
Chillers, thermal storage, pumps
2,100 m²
Electrical Yard
Generators, transformers, UPS
Steel Frame
Structure
Laterally braced wide-flange construction
Advanced Cooling Architecture
Hybrid liquid/air cooling optimized for Mediterranean climate
78%
Liquid Cooling
CDU-based direct-to-chip cooling for GPU/AI racks
22%
Air Cooling
CRAH fan wall units for network equipment
38°C LWT
High-Temp Chillers
High-efficiency units with thermal storage integration
Closed Loop
Water Efficiency
Facility water loop with minimal makeup water
IT Configuration
25 Total
Compute Racks
80 kW each
12 Total
Network Racks
34 kW each, 100% air-cooled
4-8
CDU Units
Scalable based on phase
10 kW/m²
Power Density
Data hall average

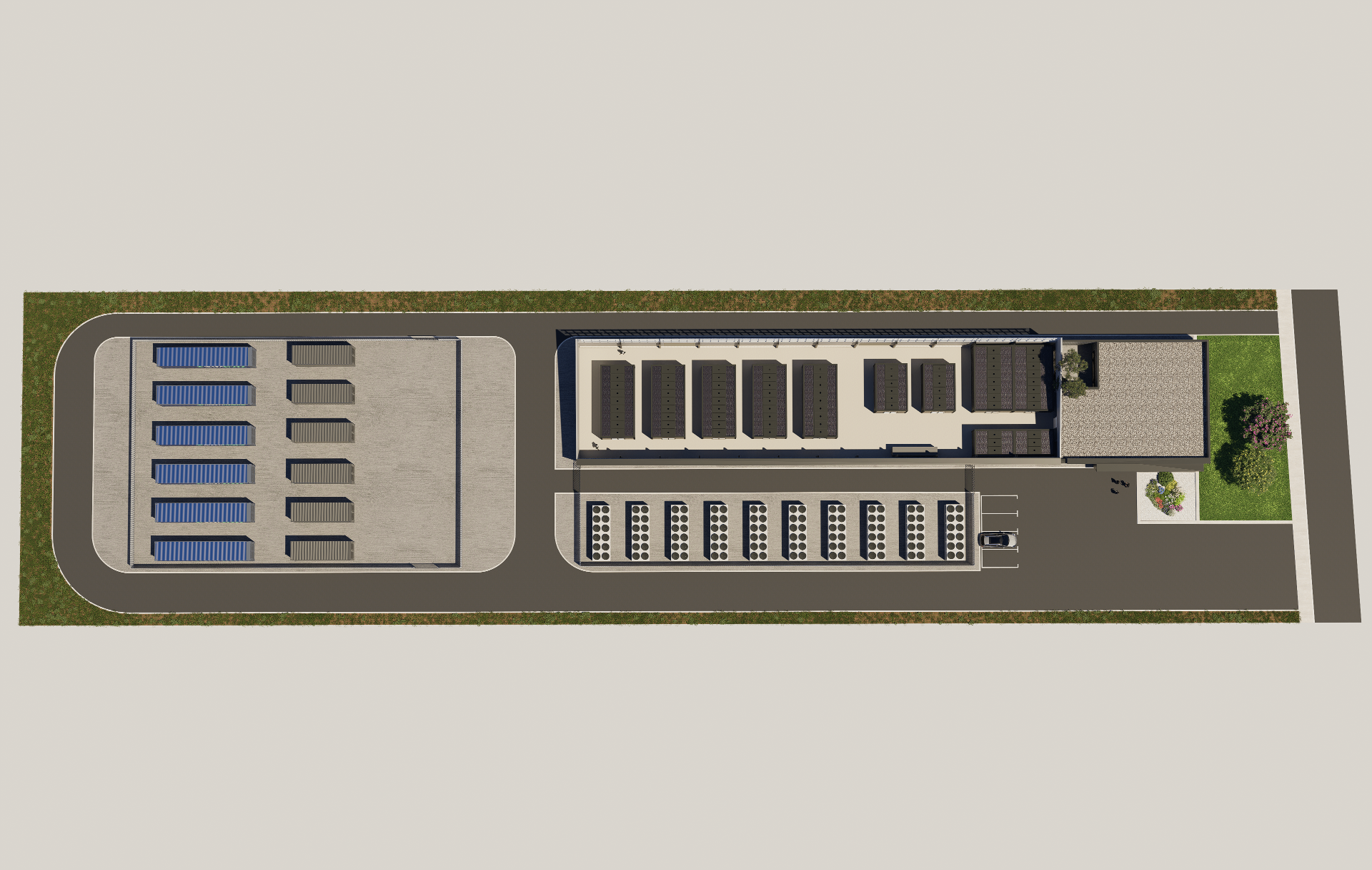

Design Renders & Plans

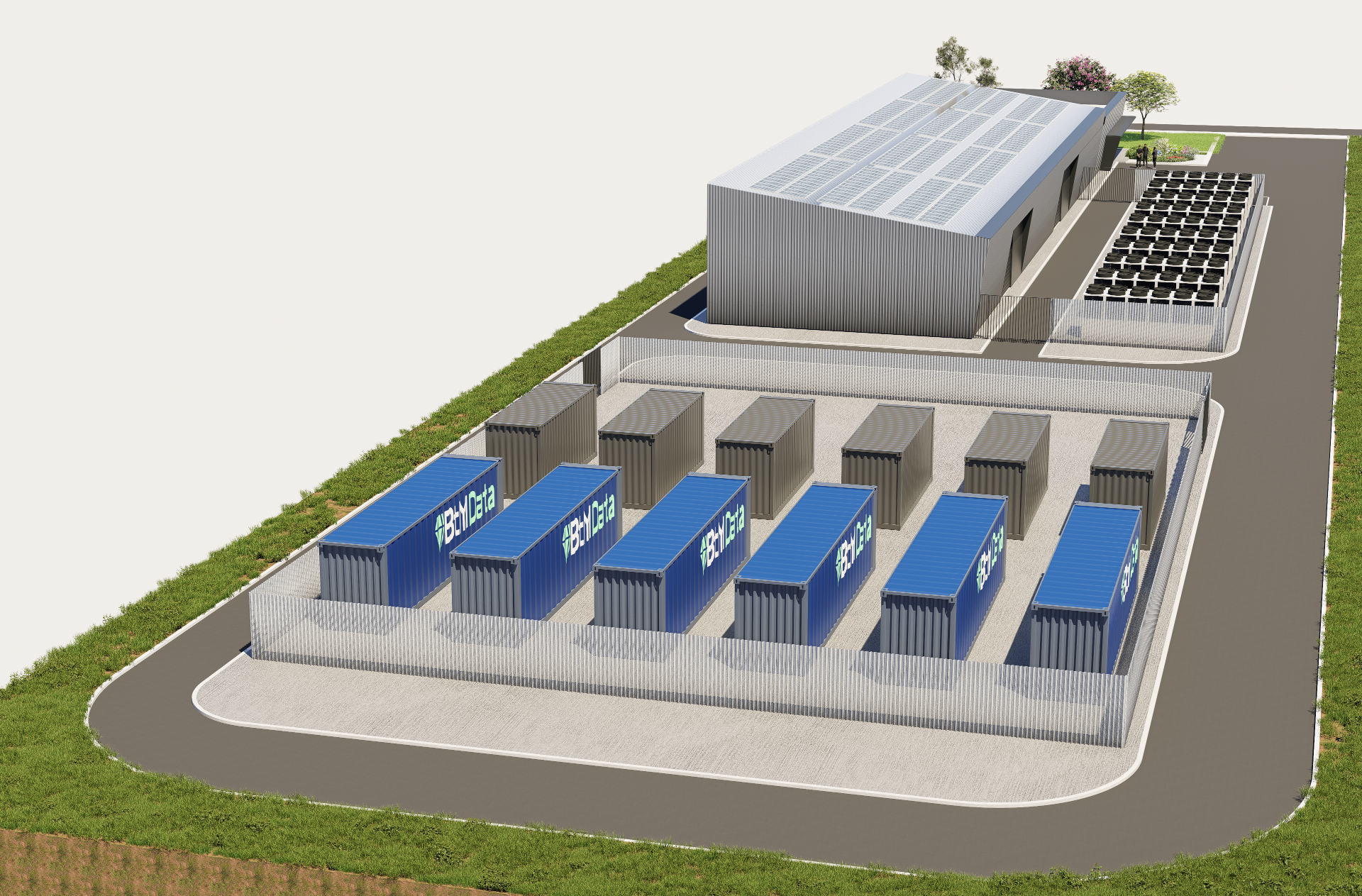

Aerial view with modular pods

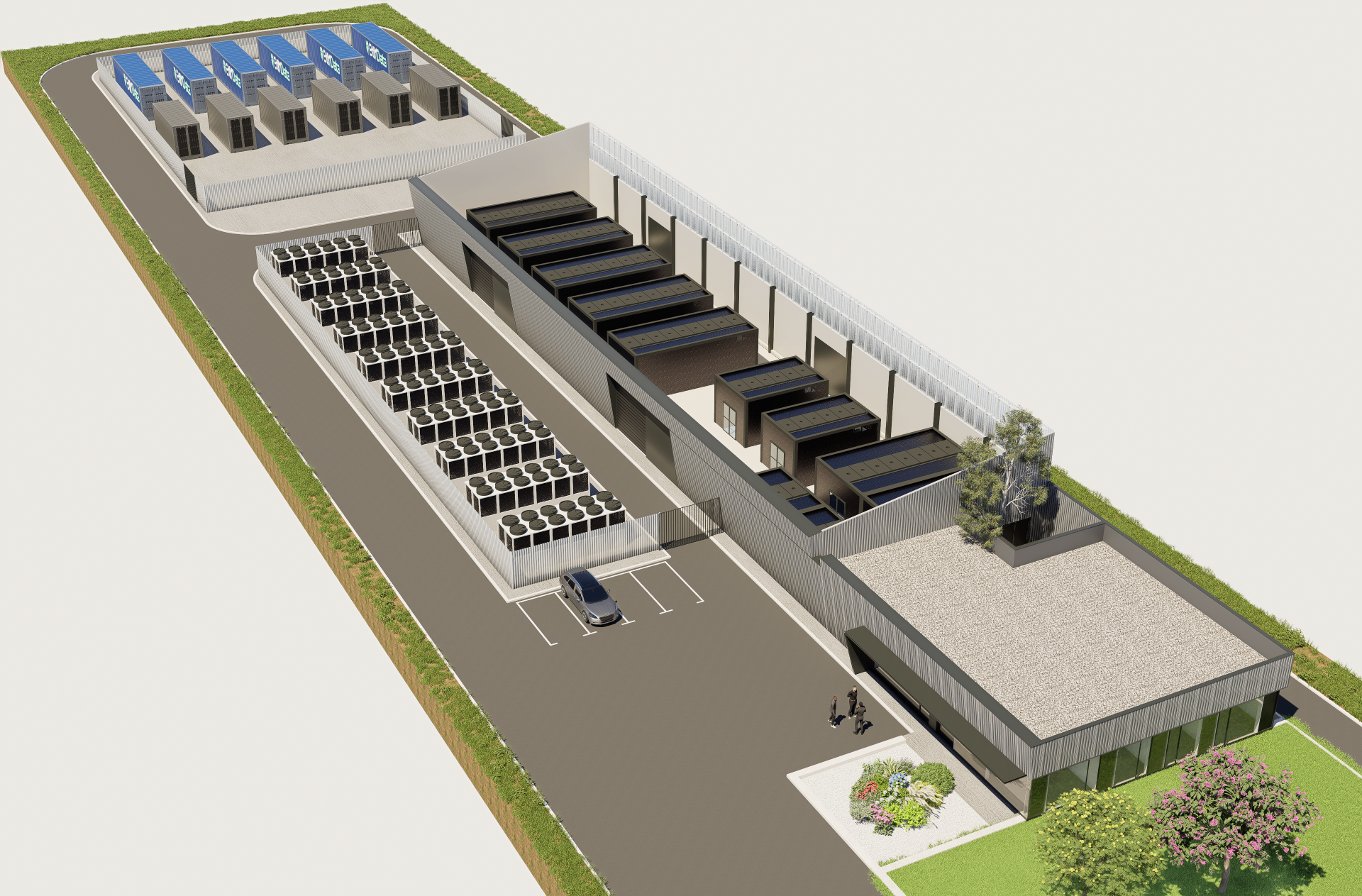

Full facility layout
Sunset exterior view

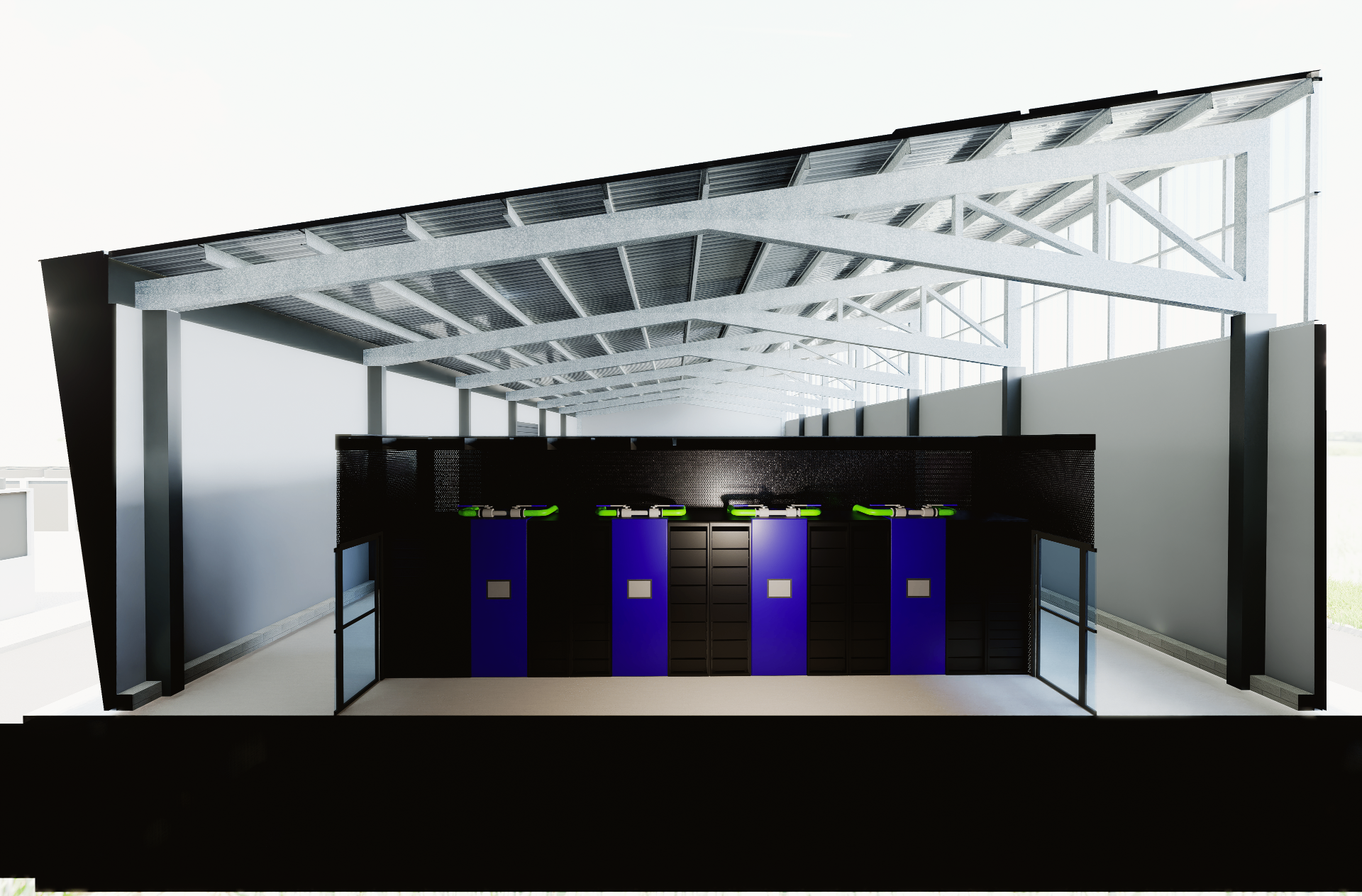

Interior cross-section
Turnkey Development & Advisory
BtMData provides comprehensive development services from concept design through commissioning and operator placement.
- Reference concept design & engineering coordination
- EPC contractor selection & construction oversight
- Hybrid cooling system optimization
- Power infrastructure design (UPS, generators, switchgear)
- Investor matchmaking & capital structuring
- Operator placement & commercialization
AI-Ready Data Center in the Mediterranean
3 MW of high-density compute capacity with hybrid liquid cooling. Design optimized for GPU/AI workloads up to 80 kW per rack.
